18" Self-Powered Subwoofer System
A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.
Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.
JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.
Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.
With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.
Size | ||||
Data Sheets | ||||
SRX818SP Data Sheet
updated: Apr 2019
|
1.79 MB | |||
Specifications | ||||
SRX818SP Spec Sheet
updated: Apr 2019
|
860 KB | |||
Manuals | ||||
SRX Connect Presets HelpGuide
updated: Oct 2020
|
286 KB | |||
SRX Connect NormalView HelpGuide
updated: Oct 2020
|
427 KB | |||
Compliances | ||||
SRX800 Series Declaration of Conformity
updated: Oct 2020
|
154 KB | |||
Software | ||||
Software Support
updated: Apr 2019
|
114 KB | |||
SRX Connect
updated: Aug 2023
|
||||
HiQnet Audio Architect
updated: Nov 2020
|
||||
SRX Connect
updated: Aug 2023
|
||||
User Guides | ||||
SRX818SP/828SP QuickStart Guide
updated: Apr 2019
|
1.55 MB | |||
SRX800 User Guide
updated: Apr 2019
|
7.41 MB | |||
Images | ||||
SRX800 Driver
updated: Apr 2019
|
158 KB | |||
SRX800 Handle
updated: Apr 2019
|
208 KB | |||
SRX818SP Back
updated: Apr 2019
|
371 KB | |||
SRX818SP Angle No-Grill
updated: Apr 2019
|
314 KB | |||
SRX818SP Angle
updated: Apr 2019
|
498 KB | |||
SRX818SP Front
updated: Apr 2019
|
429 KB |
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
System Type | Self powered 18”, subwoofer system |
Maximum SPL (1m) | 135 dB |
Frequency Range (-10dB) | 29 Hz - 150 Hz |
Frequency Response (-3 dB) | 35 Hz - 120 Hz |
Amplifier Design | Class D |
Power Rating | 1000 W Peak |
Dimensions (H x W x D) | 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in) |
Net Weight (each) | 39.5 kg (87 lb) |
EQ | 20 parametric EQ's, speaker delay, and 50 available slots for presets |

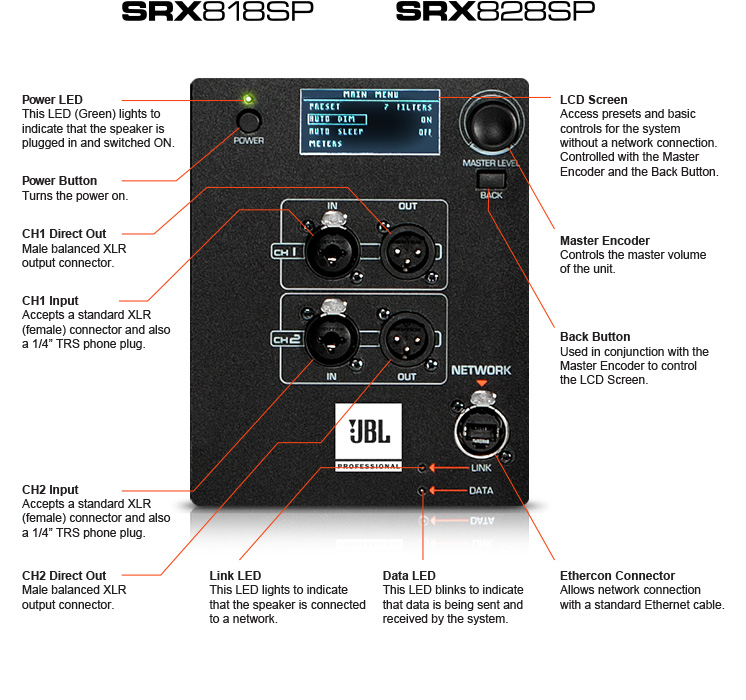

Inputs | Neutrik ¼ - XLR input; Neutrik XLR Output |
Outputs | 2 x XLR |
Enclosure | 18 mm Duraflex coated plywood |
LF Driver | 1 x 18 in Differential Drive® |
System Processing | DSP based, resident in Input Module |
Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
