EON208P
Packaged 8" 2-Way PA with Powered 8-Channel Mixer and Bluetooth®


|

$699.00
Also available from international distributors

Everything You Need to Be Heard
Get legendary sound quality with the EON208P all-in-one portable PA system, complete with an 8-channel mixer, Bluetooth audio and included AKG microphone. With a convenient suitcase-style design, the EON208P makes it easy to get great sound for performances, meetings and events. The 8-channel detachable mixer provides professional connections for mics, instruments and line-level sources, while the 8” two-way stereo speakers deliver best-in-class audience coverage. Bluetooth connectivity also allows you to stream audio from your mobile device. With 300 watts, you’ll have more than enough volume to be heard. Plus, the compact and lightweight form factor means you can carry the entire system with one hand.
PERFORMANCE

Legendary JBL audio quality and versatile operation make it the most sophisticated, easy-to-use
portable PA.
BLUETOOTH

The detachable 8-channel mixer features professional I/O, thoughtfully designed controls and Bluetooth audio for
best-in-class performance.
PORTABILITY

Compact and lightweight suitcase-style design allows for effortless one-handed carrying and
simple setup.

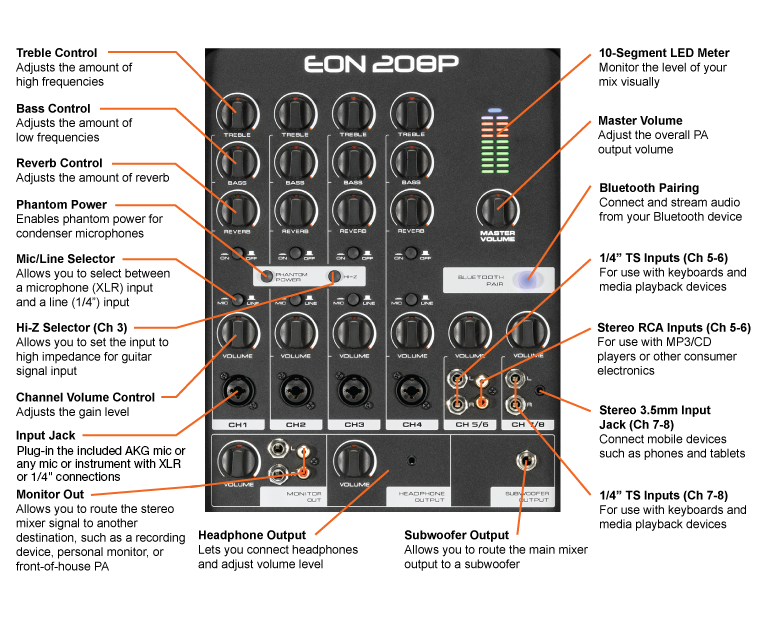

Professional-Grade Mixer
The 8-channel detachable mixer gives you the power and flexibility to sculpt your sound and be heard with stunning clarity at any venue. Simply connect your mics, instruments and other sound sources and start performing. The intuitive mixer helps you dial-in great live sound quickly and easily.

Bluetooth Streaming
With Bluetooth connectivity, EON208P lets you stream audio from your mobile device. Now you can DJ a party right from the dance floor, or play pre-recorded material for your meeting, worship event, or health club—all without the hassle of wires.

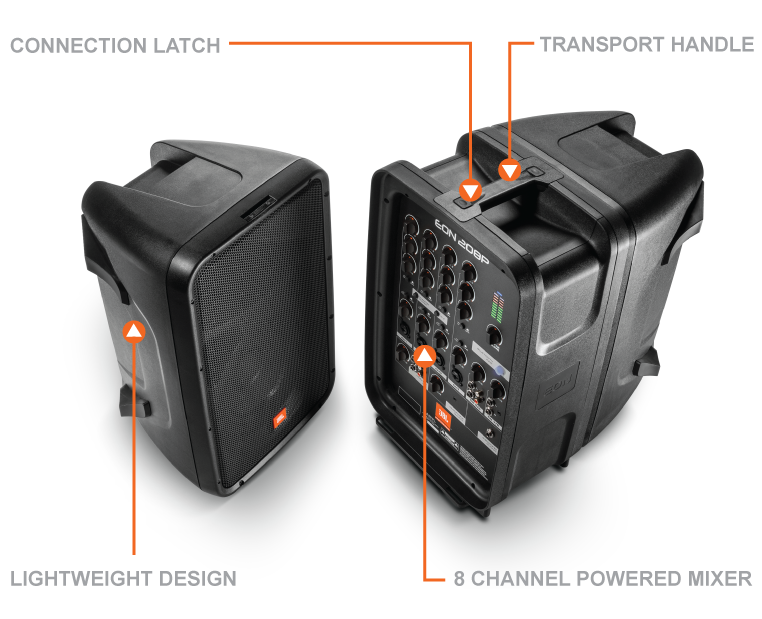

Portable Design
EON208P puts professional audio within arm's reach—literally. The twin 8” speakers and 8-channel mixer clip together to form the most comprehensive, lightweight and portable PA in its class. Carry it in one hand with a guitar slung over your shoulder to play coffee shops and medium-size gigs. Or turn a backyard into the hottest nightclub around. With uncompromising JBL sound quality and effortless portability, you’ll want to take it everywhere. The versatile enclosures facilitate stacking, pole mounting and use in monitor position.


Specifications
System Type Portable 2-way full-range loudspeakers with powered mixer
Maximum SPL Output 121 dB peak
Frequency Range (-10 dB) 60 Hz - 20 kHz
Frequency Response (+/-3 dB) 70 Hz - 18 kHz
AC Input 100-120 V, 220-240 V 50/60 Hz
Amp Design Class D
System Power Rating 300 W (2x 150 W stereo)
Output Connector 2 x 1/4" TS (unbalanced) amplifier outputs
Channels 1-4: XLR/1/4" jack combo connectors
5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo)
7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack
Phantom Power CH1 and CH2 have phantom power control and share the same selection switch
Hi-Z Selection CH3 has a Hi-Z selection switch used for guitar signal input
Mixer Output Connectors Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)
Headphone Out: 3.5mm stereo jack
Subwoofer Out: 1/4" balanced TRS jack
Treble/Bass EQ Per-channel high- and low-shelf filters; +/- 12dB cut and boost
System Limiter On-board DSP limiting
LF Driver 1x JBL 8" (203mm) woofer
HF Driver 1x 1" Neodymuim black aluminum dome tweeter
Coverage Pattern 100° horizontal x 60° vertical
Crossover Frequency 2 kHz
Crossover Type 2-way passive network, 2nd order filters (12dB cutoff per octave)
Enclosure Polypropylene
Suspension/Mounting 36 mm pole socket
Handles One on top
Speaker Grille Powder-coated perforated steel
Shipping Package(HxWxD) 22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm)
Net Weight 38.8 lbs (17.6 kg)

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN is under license. Other trademarks and trade names are those of their respective owners.


EON206 SPEAKER


EON206 POWERED MIXER
System Type:


 Max SPL Output:

Frequency
Range (-10dB):

Frequency
Response (-3dB):

Coverage Pattern:

Amplifier Design:

Power Rating:

Package
Dimensions (mm):
(H x W x D)  (in):

Net Weight:
2 Self powered 6.5”,
two-way, bass-reflex

113 dB


 64Hz – 22kHz


77Hz – 20kHz

100° x 80°

Class D

160 W (2 X 80W)


530 x 705 x 340
20.9” X 27.8” x 13.4”

11.38 kg (25 lbs)
Input Connectors:

Channels:





Input Impedance:





Output Connectors


 Signal Indicators:


 EQ:


 System Limiter:
6 inputs (2 Mono Mic/Line, 2 x Stereo)

1-2 are XLR / 1/4” jack combo connectors
XLR is a mic level input, 1/4” is a line level input, 3-4, one pair of 1/4” balanced TRS jacks (stereo), and a pair of RCA jacks (stereo) 5-6 is a 3.5 mm stereo jack

Ch 1-2 Combo: XLR 40 K Ohms Balanced
Ch 1-2 Combo: TRS 40 K Ohms Balanced
Ch 3-4: TRS 20 K Ohms Balanced
Ch 3-4: RCA 5 K Ohms Unbalanced
Ch 5-6: 3.5 mm 10 K Ohms Unbalanced

Monitor outputs:
one pair of RCA jacks (stereo)

Limit:
Yellow LED indicates limiter active condition

Individual channel Bass and Treble controls, center detent, +/-12 dB cut and boost

On Board DSP Limiting and Tuning
