EON ONE PRO (discontinued)

All-in-One, Battery-Powered, 7 Channel, Portable Linear-Array PA System

EON ONE PRO
Larger Images

Get that world-renowned JBL Professional sound, anytime, anywhere with the new JBL EON ONE PRO, the first, portable, battery-powered, linear-array PA system in its class. With a lighter, more compact design and up to six hours of play time provided by a rechargeable lithium-ion battery, you can now take your performances to places you’ve only dreamed of. Bring the band along and get pristine audio quality through its seven-channel analog mixer with integrated effects. And keep the crowd engaged between sets by streaming Bluetooth® audio from your mobile device.

Carry your PA with just one hand. Set up and get that legendary JBL sound in seconds. Cut the cord and give your fans powerful, unique experiences—pop-up performances, remote weddings, subway stops, beach bonfires, rooftops, street corners, and more—the only limitation is your imagination. PLAY ANYWHERE with the new JBL EON ONE PRO.

Features

  • All-in-one packaged PA with proven JBL Professional sound quality
  • Carry the compact and ultra-light EON ONE PRO with just one hand—it’s only 35 lbs/16 kg
  • Perform for up to 6 hours without recharging, courtesy of its extended-life lithium-ion battery
  • Deliver chest-thumping bass through an unobstructed 8” subwoofer with accurate low-frequency response
  • Easily plug in and mix multiple microphones and instruments through its integrated 7-channel analog mixer featuring Hi-Z inputs and phantom power
  • Get your optimal sound with bass, treble and reverb controls
  • Stream break music or backing tracks from your mobile device via Bluetooth.
  • Keep your mobile device handy and powered up with a built-in stand and USB charging port
  • Capture the moment or add lighting effects with the built-in accessory mount for a camera or lighting element
  • The next generation of the best-selling choice* for live performances, conferences, events and more—now 25% smaller

*EON ONE: #1 Portable PA Sales OCTOBER 2016, US MI Sales Track

More Details

Take Your Performance to New Places

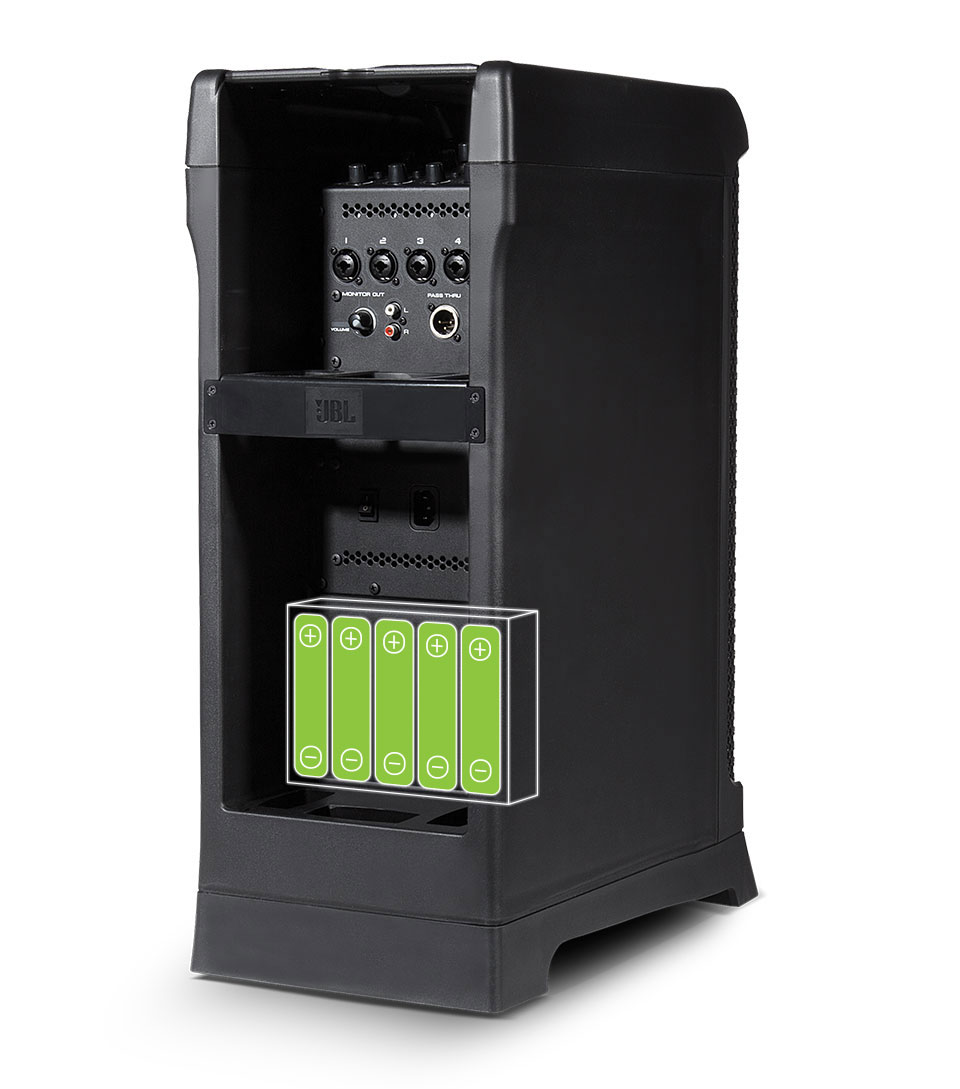

The EON ONE PRO empowers you to give your fans incredible live experiences, wherever your inspiration takes you—on a mountain or the beach, subway or streetside—even when you can’t plug in. Music transcends boundaries, why shouldn’t your PA? That’s why we created the first-in-class battery-powered linear-array PA system, so you get amazing sound everywhere you go. The rechargeable lithium-ion battery provides up to six hours of play time, so you can give back-to-back performances without an outlet. Leave the generator at home.

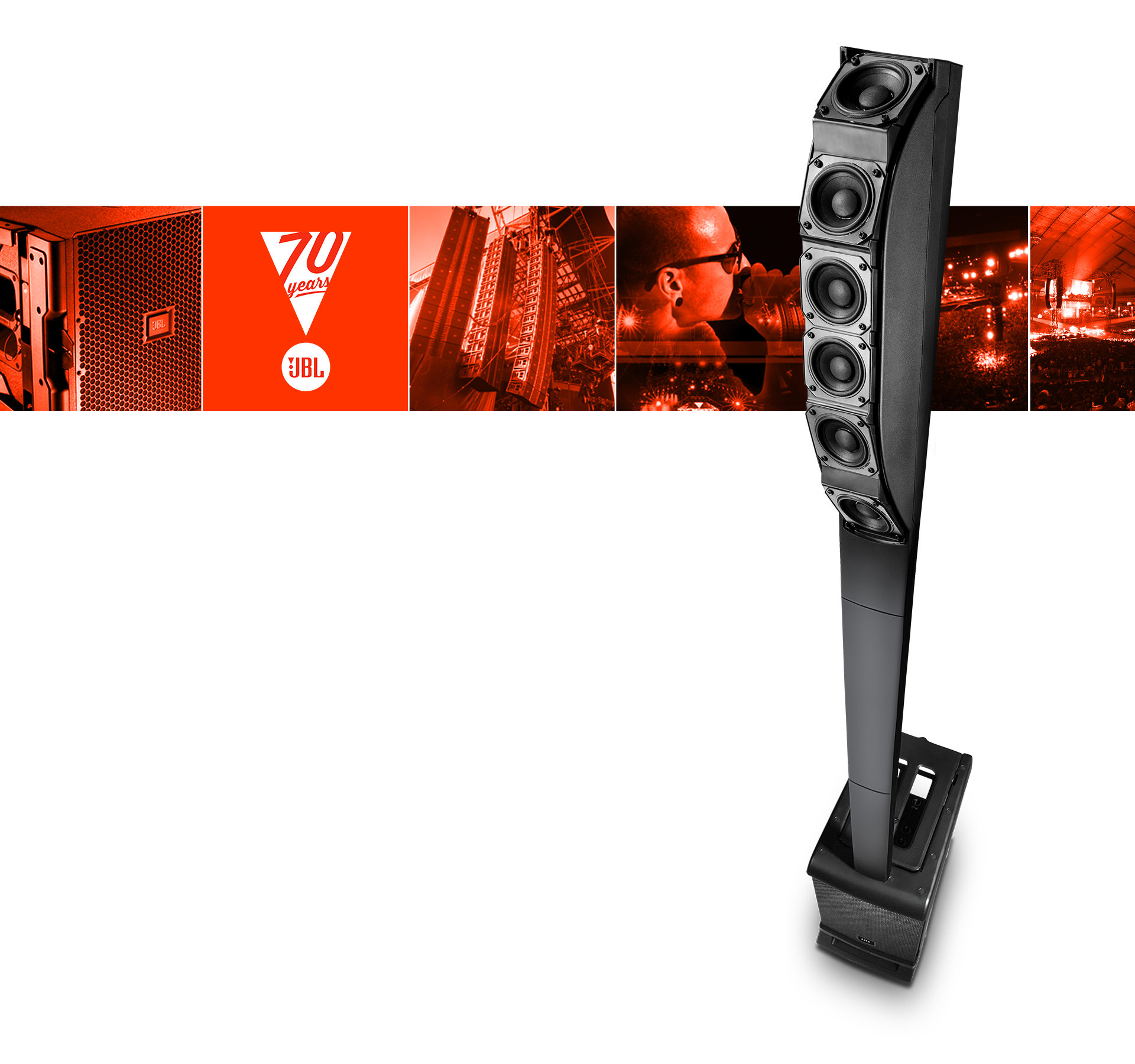

Proven Legendary JBL Professional Sound
The EON ONE PRO enables your audience to experience the same legendary JBL sound heard in some of the largest stadiums and used by top artists. With 70 years of professional audio experience, the EON ONE PRO provides superior sound quality so you can sound great no matter where you play.

Sound Coverage Across All Angles
Leveraging JBL’s patented, pioneering research and development around linear array design, the EON ONE PRO optimizes sound dispersion so your audience can hear your performance from all angles—even from behind. Similar to the technology used in large venue speaker arrays, the JBL EON ONE PRO optimizes the spacing of each driver to ensure amazing sound quality and consistent directionality, allowing your crowd to hear every note, from every angle, just as you intended it. EON ONE PRO even recalibrates its sound depending on the number of high-frequency height spacers you choose when setting up.

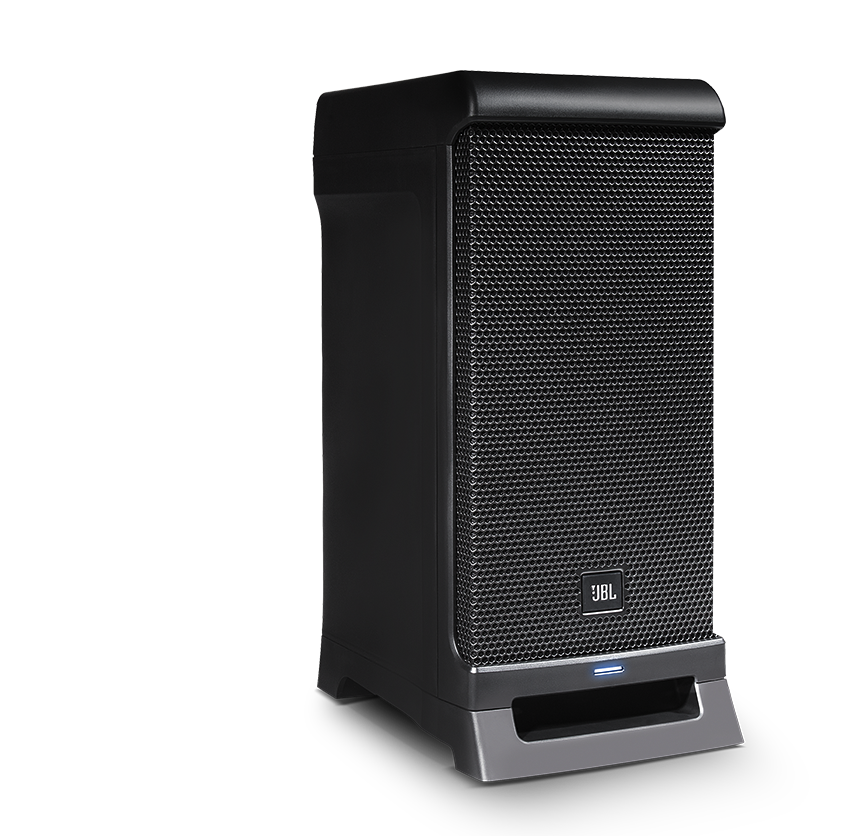

Bass You Can Feel
Even without power, you can still sound powerful. The EON ONE PRO houses an 8” subwoofer that delivers low-end response that your audience can really feel. Bass-reflex technology further increases the impact of your bass tones, providing the well-defined low-frequency response that you would expect from a full-size speaker system.

One-Hand, Easy-to-Carry Design
With EON ONE PRO’s easy-to-carry, lightweight and versatile design, you only need one hand—and one trip from the car. The linear-array speaker system fully collapses into the base, no shoulder bags or multiple trips required. An ergonomic handle design and light weight of just 35 pounds (16 kg) means EON ONE PRO rests perfectly parallel to your body during transport—making it easy to take it with you to even the most remote locations.

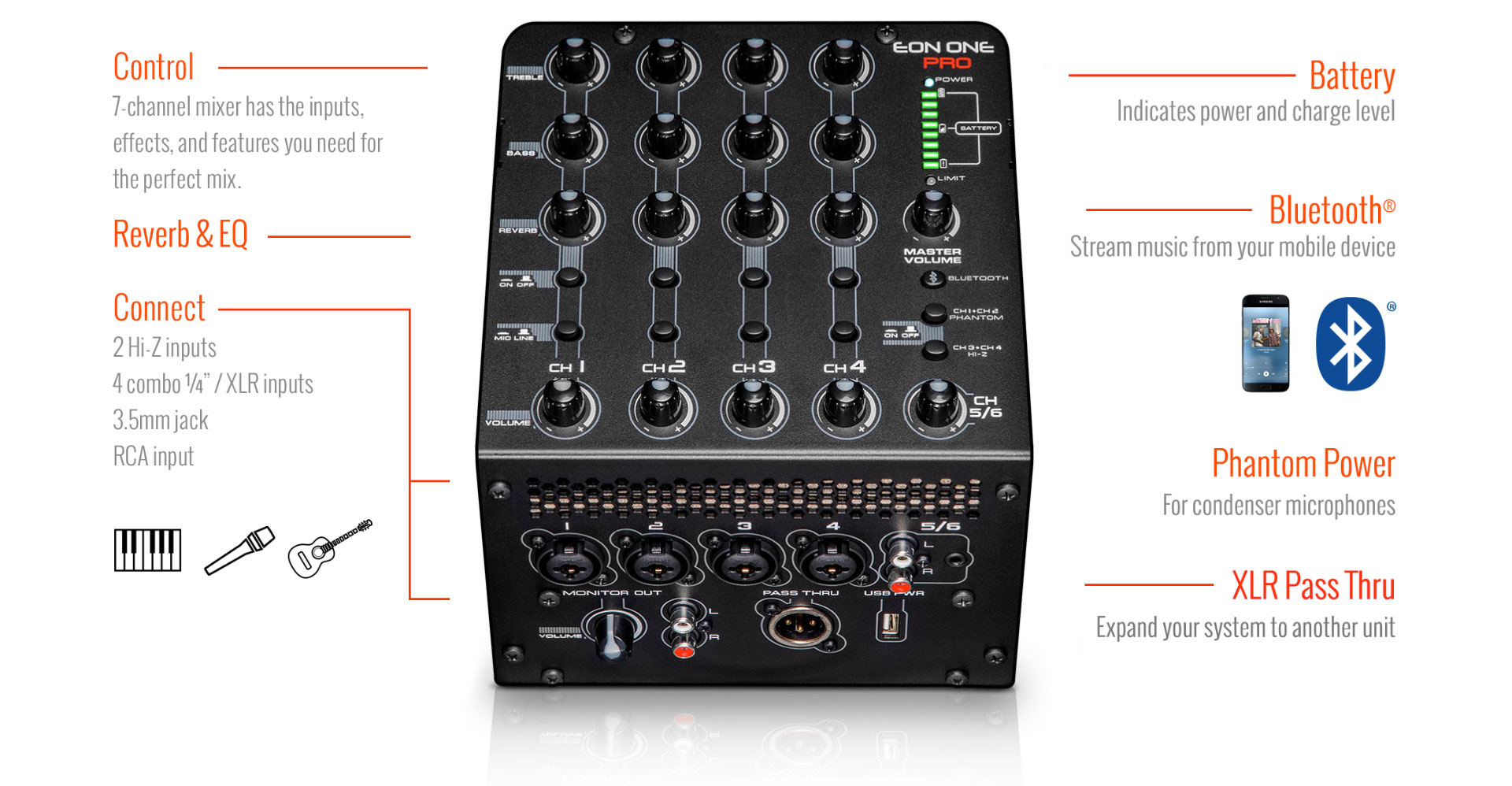

The Connections You Need to Get a Perfect Mix
EON ONE PRO’s streamlined 7-channel mixer has the inputs, effects, and features you need for the perfect mix. Get optimal sound from electric guitars and other instruments by plugging into its two Hi-Z inputs, and take advantage of the warmth of professional condenser microphones with +48v phantom power. With four combo ¼” / XLR inputs, a 3.5mm jack, and an RCA input, you can connect virtually anything you desire. Bass, treble and reverb controls allow you to fine tune your tone. And for an even bigger sound, connect a second EON ONE PRO to the pass-thru input.

Stream Bluetooth Audio Whenever You Need It
No wires, no problems. With EON ONE PRO, keeping your crowd engaged when the bands on break is easier than ever. Stream music from any Bluetooth-enabled device to keep the party going, or even use this for backing tracks. And, with a built-in USB port, you won’t need to worry about keeping your device charged—just plug it in. There’s even a built-in tablet stand so your device is always in reach.

Capture Your Performance or Set the Vibe
You spend so much time working to get that perfect sound and performance, it deserves to be captured. The EON ONE PRO features an accessory mount located at the top of the line-array speakers—simply attach a camera and you’re ready to record.  You can also add a lighting element to set the perfect vibe.

Reviews

“It makes sense to get something that works well for a gigging musician, be reliable and sound great and the built in battery can save the day in situations where power is unavailable” —Tech Crunch

In summary, the EON One Pro does exactly what you’d expect it to do, and it does it very nicely” —Sound on Sound

Downloads

  Version Language Size Uploaded
file type icon EON ONE PRO Owner's Manual-English
en updated: Mar 2024
  en  4.36 MB Mar 2024
Data Sheets
file type icon EON One Pro Sell Sheet
updated: Oct 2020
    1.2 MB Oct 2020
Compliances
file type icon EON ONE Pro
updated: Oct 2019
    125 KB Oct 2019
User Guides
file type icon EON One Pro User Guide (English)
en updated: Dec 2019
  en  4.28 MB Dec 2019
file type icon EON One Pro User Guide (Spanish)
es updated: Dec 2019
  es  4.29 MB Dec 2019
file type icon EON One Pro User Guide (German)
de updated: Dec 2019
  de  4.29 MB Dec 2019
file type icon EON One Pro User Guide (French)
fr updated: Dec 2019
  fr  4.26 MB Dec 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

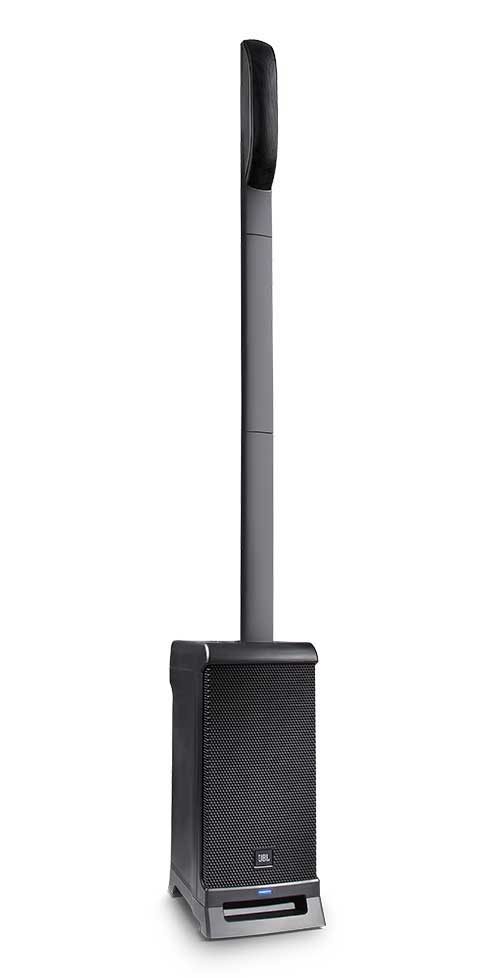

Specifications

Battery Type lithium-ion rechargeable
Battery Life 6-hour play time
Max SPL Output 118 db (peak)
Bass 8" LF bass unit
Driver 6 x 2" HF drivers
Coverage 100° x 50° Clean Coverage using patent-pending Directivity Control Geometry
Mixer Seven-channel mixer with Bluetooth streaming audio, (4) 1/4”/XLR, (1) 3.5 mm, (1) stereo RCA, +48V phantom power, Hi-Z, and a pass-thru XLR connector
USB USB charging port and builtin tablet/phone stand
Weight 37.5 lbs (17 kg)
Accessories Optional wheeled bag, attachment mount for lighting element
Mic Inputs 4
Phantom Power Yes
EQ Treble, Bass
Effects Reverb
Inputs 2 x XLR-1/4" combo (mic/line), 2 x XLR-1/4" combo (mic/line/Hi-Z), 1 x Dual RCA Stereo, 1 x 1/8" TRS (aux in)
Outputs 1 x Dual RCA Stereo (monitor out), 1 x XLR (pass thru)
Enclosure Polypropylene
Dimensions (H x W x D) 594mm x 266mm x 401mm (23.4in x 10.5in x 15.8in)

Accessories

EON-ONE-PRO-TRANSPORTER | Rolling Transporter for EON ONE PRO System
EON-ONE-PRO-TRANSPORTER Main photo
Larger Images

Padded cover w/ lightweight rolling base for EON ONE PRO system
